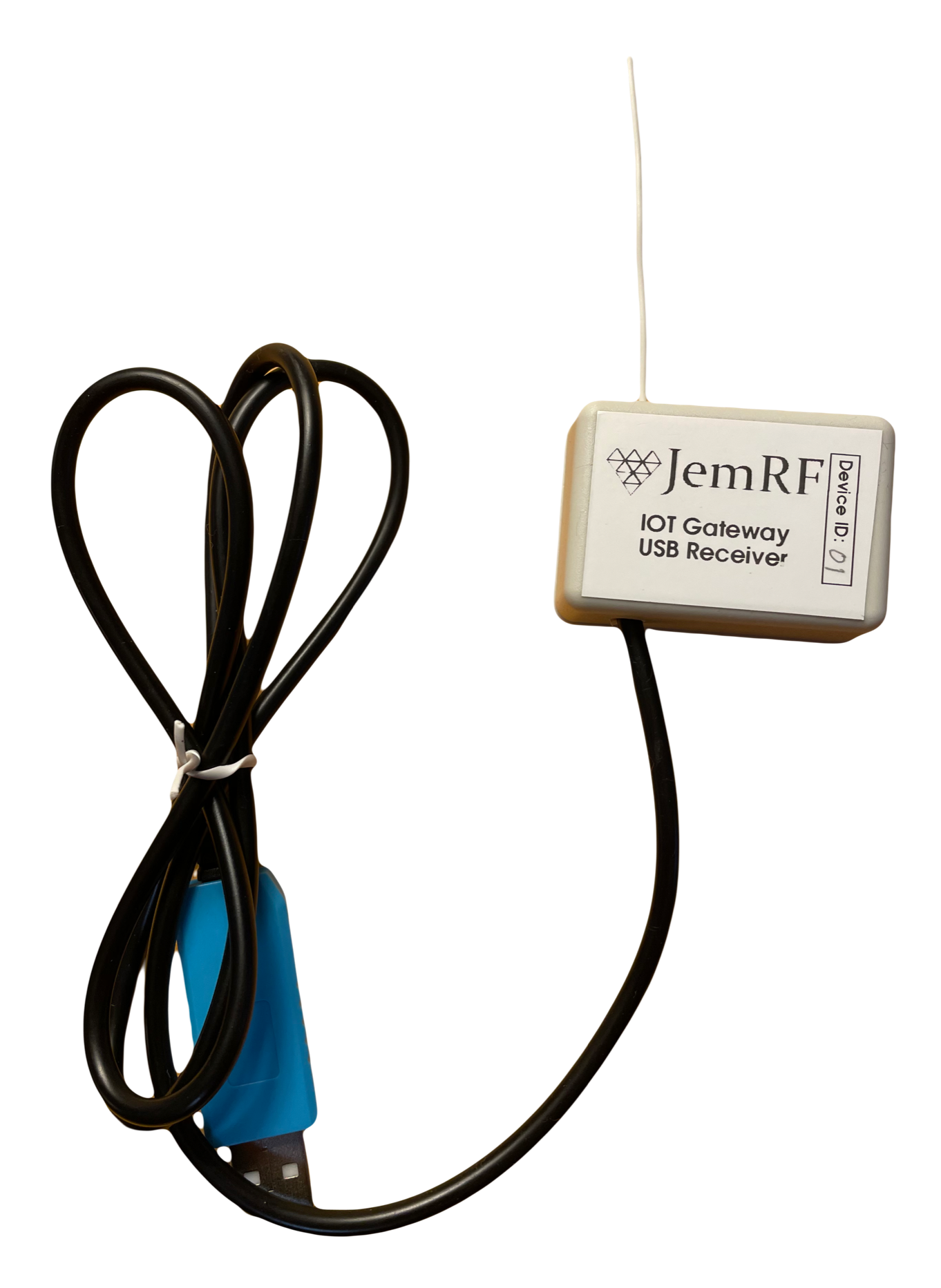

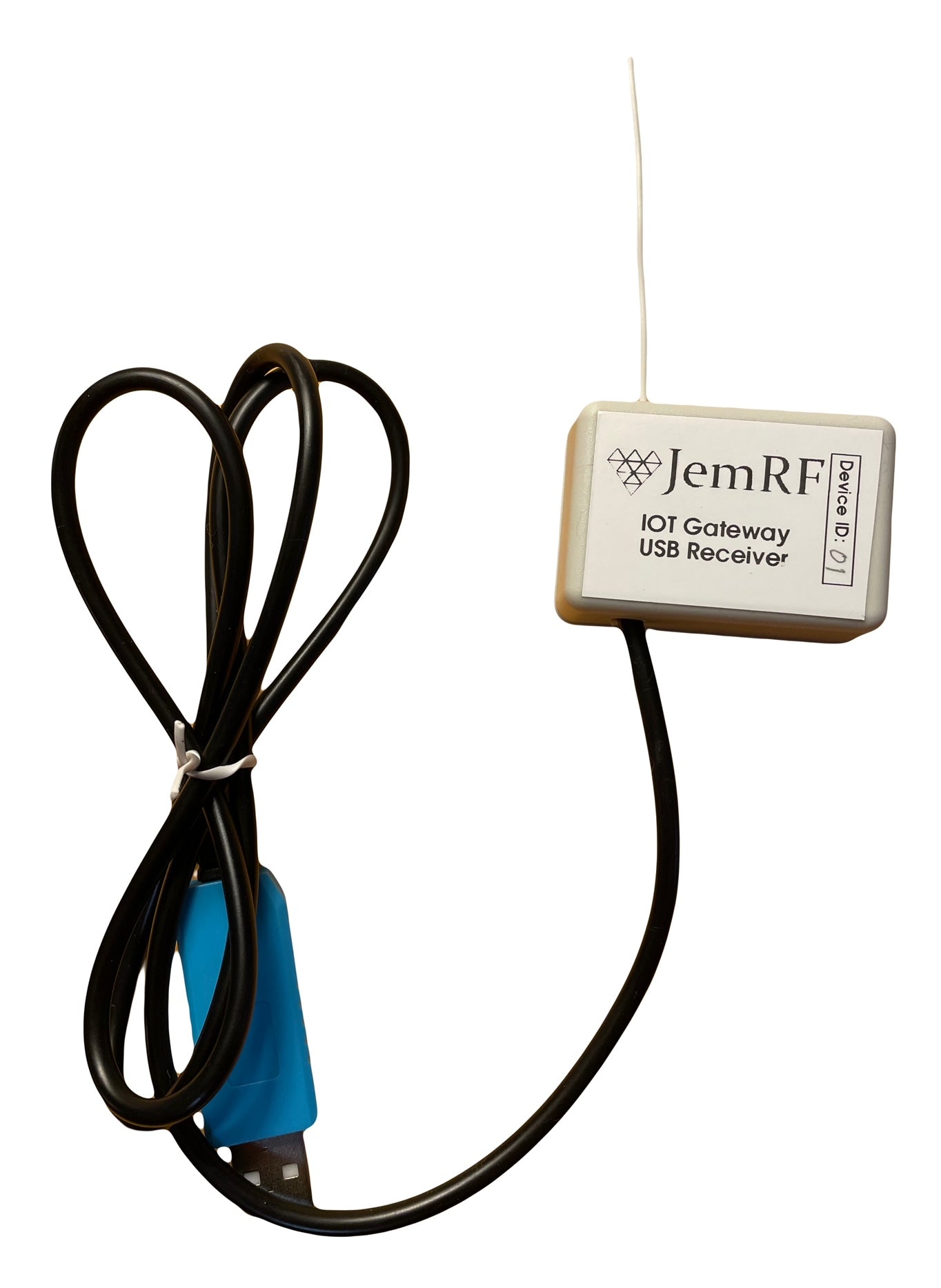

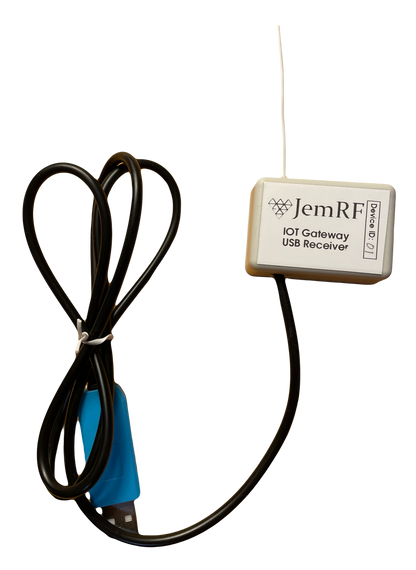

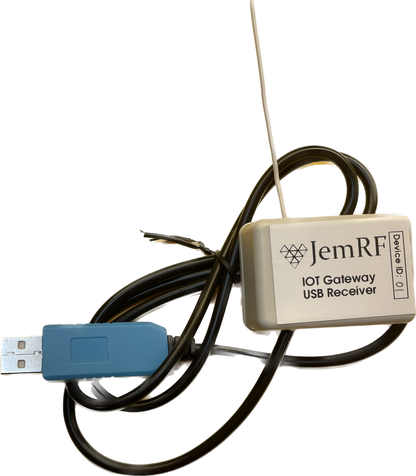

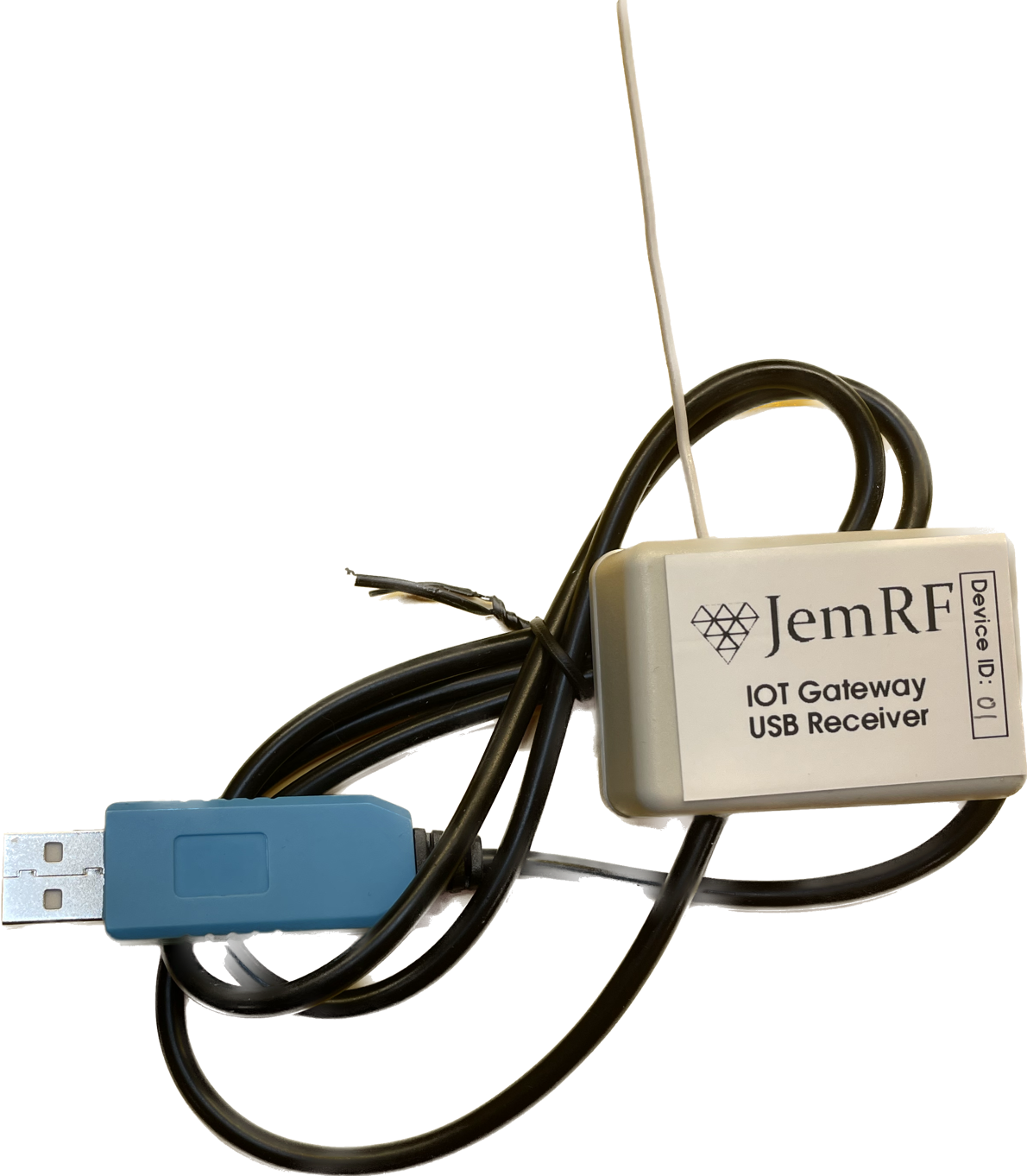

IoT Gateway USB Receiver

Wireless Radio Receiver With USB Interface

Converts wireless signals to serial data. When connected to a computer, it acts as an IoT hub for virtually unlimited JemRF wireless devices.  The USB IOT Gateway works on both Windows 10 and up, as well as a Linux-based OS such as the Raspberry Pi and Orange Pi computers.

Features:

• Simple plug-and-go radio module for any computer with a USB-A port.
• Communicates with our radio wireless sensor modules
• TTL UART to USB interface built-in
• Default 9600 Baud
• Fitted with wire whip antenna
• Operates the same as the IOT Gateway for the Raspberry Pi
• USB 1 M cable to IOT Wireless Gateway Receiver
• Existing PEP Python 3 software works on Windows with Python 3.11.4 or higher just change the serial port and start receiving.
• Provides RSSI (Received Signal Strength Indicator) to show signal strength for each sensor.

Product Tutorial:

 - IoT Gateway For Raspberry Pi Tutorial

Technical Specs:

• All devices are based on the high-performance RF transceiver using the market-leading CC1100 SOC.
• IOT Receiver Powered by USB-A

• Up to 1KM line of sight. Short-range (30M) penetration of walls and floors.

• 128-bit AES encryption security.
• Driver-less installation.
• All the devices are highly configurable through the serial port or over the air using the LLAP messaging protocol specified in the manual.
• The base station communicates through USB-A port (TTL UART).
• Communicates in ASCII clear text making it very easy to exchange data between devices over the air.
• Supports point-to-point, point-to-multi-point, multi-point-to-point and multi-point-to-multi-point.
• A virtually unlimited amount of devices can be deployed. 99,999 Personal Area Network ID’s, 10 channels per frequency and 7,744 Device ID’s per network.
• Supports six frequencies (433 MHZ, 915 MHZ (default US & Canada), 868.3 MHZ (default Europe), 868 MHZ, 903 MHZ, 315 MHZ)
• Ten channels per frequency.
