The Smart Gateway is our latest product. It provides a wide range of operating options.
This Gateway receives messages from the Wireless RF sensors and uses secure networking to send them to the JemRF Monitor servers.
The Smart Gateway has a built-in MQTT Agent that can publish sensor values to an MQTT Broker, providing a wide range of custom applications.
A simple firmware update button will automatically download and install firmware updates. USB port for offline updates.
The Smart Gateway setup uses a similar internal WiFi configuration process for the WiFi Gateway and WiFi Sensor devices.
It receives sensor readings and time tags and stores them to allow for a delayed send if the connection to the server is lost. An example is on a transfer truck between facilities or remote locations.
Power pack for days of battery operation.
Connects to Wired Ethernet. (WiFi is a future option.)
Wired Ethernet has a POE option at 12 Watts.
Support secure sending a message to Monitor.JemRF.com or a custom server.
It supports MQTT client-to-broker connection to forward data to custom servers. MQTT data formats are text, JSON, and SparkPlugB V3.
Can be configured using Static IP or DHCP
Option for Internal battery-backed clock or use NTP Server for time.
It can be configured and managed from an internal WEB interface, wireless or wired.
It has a CSV data export option to export data received by the day.
Provides the option to convert Celsius to Fahrenheit.
Provides option change RF Receiver channel (0-9).

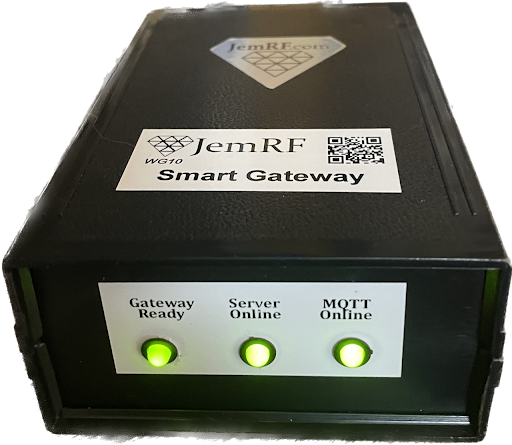

Status LEDs display the visual status of Power, Server Connection, and MQTT Connection.
Custom Option:
There is an option for a USB Cell Modem if required. Contact sales@jemrf.com for details.
Supports MQTT message formats
JemRF format
Cayanne
JSON (Home Assistant)
SparkPlugB V3
The Smart Gateway does not issue commands to the Wireless RF Sensors.
The Smart Gateway protocol does not work with the older Private Eye Server.
Installation:

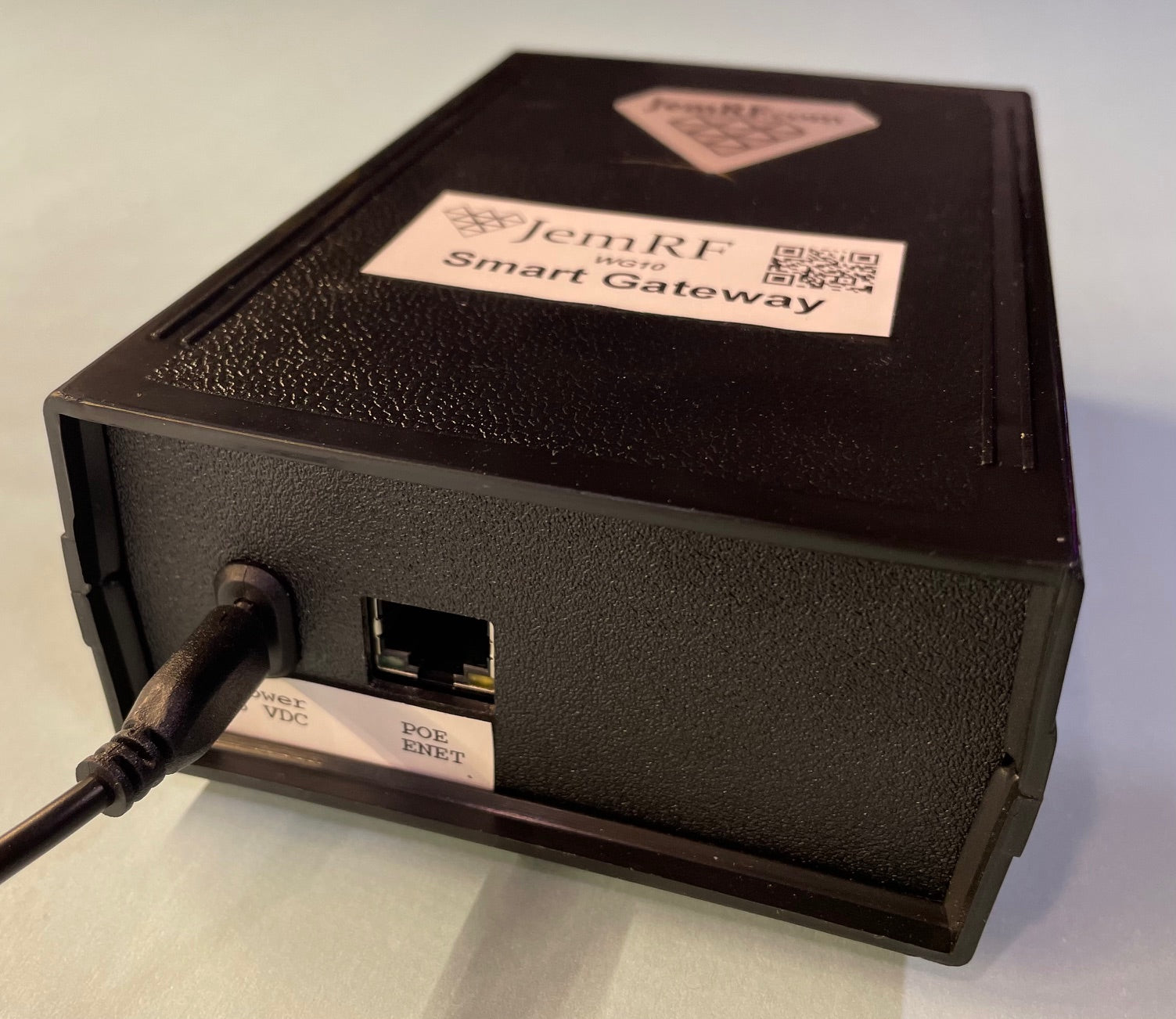

Installation is easy; plug-in USB-C power, or if purchased, use POE.
The Gateway has an internal WiFi network for setup and monitoring.
